Cypher ES Battery Edition AFM​

Routinely achieve higher resolution than other AFMs

• Unmatched mechanical stability—noise floor half that of any other AFM
• Exceptionally low drift—higher resolution and straight lattice lines
• Low noise electronics—no artifacts from electronic noise sources

blueDrive makes imaging in liquids simpler and more stable​

• Clean photothermal drive response makes it easy to tune cantilever resonance​
• Drive remains stable over long time periods, even with fluid perfusion

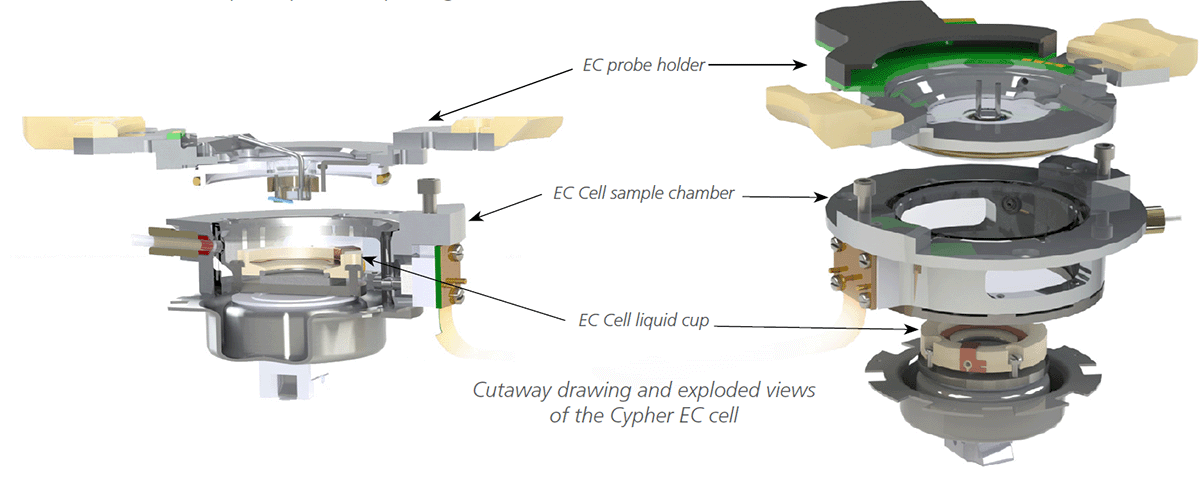

Fully-sealed three-electrode electrochemistry cell ​

• See EC Cell details on next tab​

EC cell constructed from highly-chemical resistant materials​

• See EC Cell details on next tab​

Compatible with most third-party potentiostat models​

• Connecting cables provided for both CH Instruments potentiostats or general terminal connections

Fast scanning can monitor dynamic electrochemical processes​

• Scans 10-100× faster than typical AFMs​
• Supports the fastest, smallest probes (3×9 µm spot size—optional)

Available with sample heating and cooling​

• Optional sample heater-cooler integrates with EC cell​
• Enables cooling to 0°C and heating up to 120°C

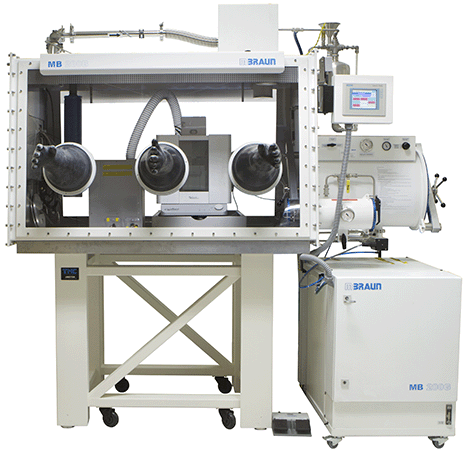

Can be integrated in a glovebox for sub-ppm water and oxygen​

• Well-established performance with ultra-stable customized MBraun glovebox models​
• Compatible with most other glovebox models of adequate size​
• AFM performance (resolution/noise) unaffected even during active glovebox operation
