AFM Force Measurements

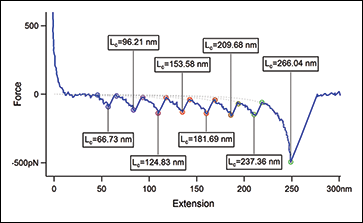

This force-distance curve is an example of force spectroscopy measurements. Here, a protein called titin was unfolded under the force of the atomic force microscope. Each peak corresponds to the unfolding of one domain in the protein.

Atomic force microscopy is a powerful tool capable of measuring the mechanics of materials, ranging from soft biomaterial (molecules, cells, tissues, etc.) to polymers and harder inorganics. Depending on the spring constant of the cantilevers, pN-scale forces can be measured as either an individual molecule is unfolded (intramolecular) or two molecules are pulled apart (intermolecular).

Ask an AFM expert for more information
  • Single-molecule force spectroscopy
  • Pull molecules at pN force resolution
  • Push against material at a controlled triggered (force or deflection) to measure Youngs Modulus
  • Force clamping
  • Force ramping
  • Operate in relevant solutions and temperatures
  • Chemical force microscopy
  • Colloidal probe AFM
  • Unraveling/unfolding modular proteins; measure/observe energy landscape
  • Unzipping/melting DNA molecules (B-S transition)
  • Polymer conformational changes
  • Measure forces between molecules: ligand-receptor pairs, antibody-antigen binding, protein-mineral
  • Measure specificity between functional groups and a surface
  • Measure adhesion forces
  • Mechanical measurements of cells (both fixed and living), polymers, gels
